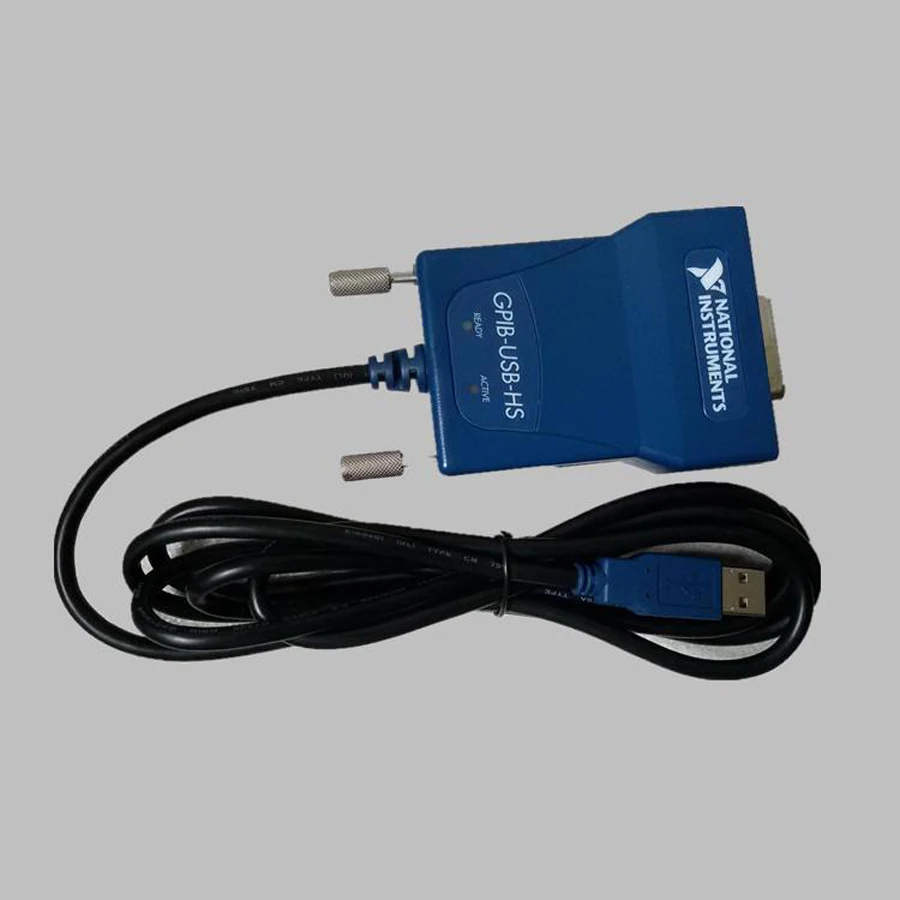

For National Instrumens NI GPIB-USB-HS GPIB Data Acquisition Card 778927-01 IEEE 488 Barcode Scanner

For National Instrumens NI GPIB-USB-HS GPIB Data Acquisition Card 778927-01 IEEE 488 Barcode Scanner

For National Instrumens NI GPIB-USB-HS GPIB Data Acquisition Card 778927-01 IEEE 488 Barcode Scanner
  • Price
  • US $179-185/piece
  • Model
  • 778927-01
  • Unit Price
  • Order QuantityUnit PriceDelivery period
    1 - 10US $185.00 /piece7 day
    11 - 50US $179.00 /piece7 day
  • Quantity
  • piece
Detail Information
Description:
The compact GPIB-USB-HS transforms any computer with a USB port into a full-function, IEEE 488.2 controller that can control up to 14 programmable GPIB instruments. The small size and light weight of this controller make it ideal for portable applications using a laptop computer or other applications in which the computer has no available internal I/O slots. The GPIB-USB-HS fits for Windows 7/Vista/XP/Me/2000/98, Mac OS X, and Linux computers with a USB port.

Parameters:
- Product: GPIB-USB-HS
- Cable Type: USB
- Product Number: 779704-01, 778927-01
- System: For Windows, Mac OS X, or Linux.
- LabVIEW RT Support: No
- Voltage: 5V DC
- Current: 500 mA
- GPIB Standard: HS488, IEEE 488.1, IEEE 488, IEEE 488.2
- GPIB ASIC Chip: TNT5004
- Port Number: 1
- Max. Baud Rate (IEEE 488.1): 1.8 MB/s
- Max. Baud Rate (HS488): 7.2 MB/s
- Max. Cable Lenght: 4M
- I/O FIFO Cache: 64B, 32B
- Max. Connection Port: 14
- Length: 10.7 cm, Width: 6.6 cm
- I/O Connector: 24-pin IEEE 488
- Operating Temperature: 0 to 55

Package Included:
- 1 x GPIB-USB-HS Data Acquisition Card
- 1 x Driver Disk
- 1 x User Manual
778927-01 (2)778927-01 (1)
